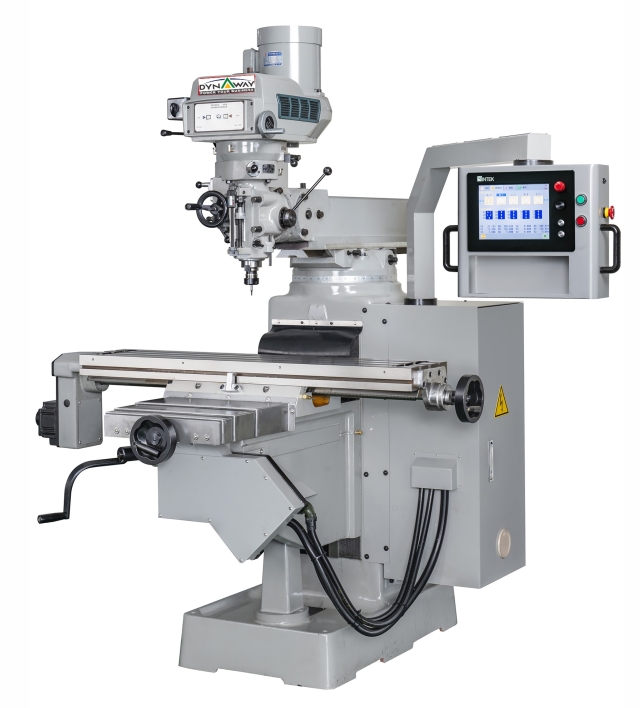

CNC Knee Type Milling Machine

CNC Knee Type Milling Machine

Hot
Model:
DM-3VS-CNC Milling Machine
Country of Origin:
Taiwan
Material:
Castings
Color:
Customized Color Available

Detail Specifications / Descriptions

Model: DM-3VS-CNC
Table dimension: 254 x 1270mm
Table T-slot(wide x no. x pitch): 16 x 3 x 63.5mm
X axis travel: 762mm
Y axis travel: 400mm
Z axis travel: 405mm
Spindle nose to table surface: 50~455mm
Spindle quill travel: 127mm
Spindle nose(BT/CAT): NST#30(R8)
Spindle quill diameter: 85.725mm
Main motor: 3HP(variable speed)
Spindle speed: 50~4500rpm
Rapid feedrate(X/Y): 7.5M/min.
Cutting feedrate(X/Y): 3M/min.
Axis motor(X/Y): 1/1kw
Coolant system: 350W
Lubrication system: 15W
Air pressure: 6kg/cm2(at least)
Machine weight: 1,550kgs
Floor space(L x W x H): 1800 x 2000 x 2100mm
CNC controller: INTEK M83 Series

CNC Knee Type Milling Machine
Company: DYNAWAY MACHINERY CO., LTD.
Address: (office) 5F NO. 146-29 SEC. 1 DONGSHAN RD. TAICHUNG CITY 40647 TAIWAN
Telephone: 886-4-2437-5196
Fax: 886-4-2437-5149
E-Mail:
URL: www.dynawaytech.com

Send inquiry to this company
