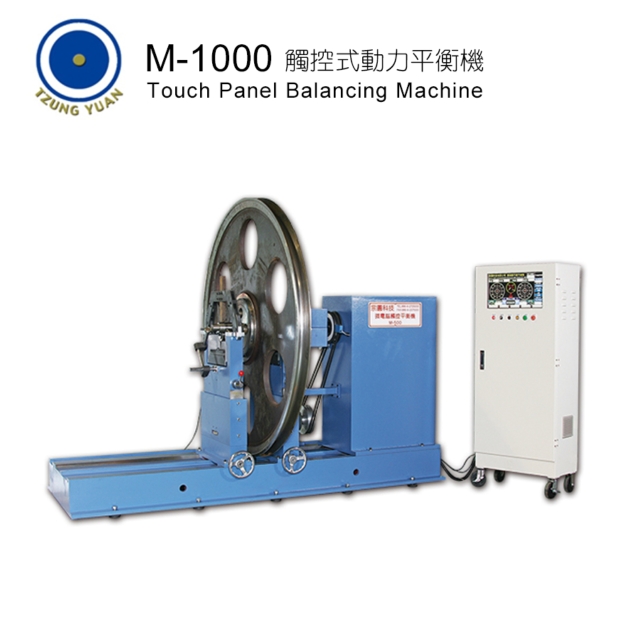

M1000 Touch Panel Balancing Machine

M1000 Touch Panel Balancing Machine

Hot
Model:
M-1000

Detail Specifications / Descriptions

Application:
For the balance and correction of rotary components and Assemblies for Axis,
Glidewheel, Motor, Generators,Exhaust fans,Eengines, Agricultural Machinery,
Textile Machinery, Food processing machinery, Automobiles and Motorcycle.


Features:
Man-machine interface touch operation.
PLC control system.
Human/machine interface for easy balance-weight testing, balance weight unit will besst as “gram”after testing.
Monitor displance all sorts of setting and digitized imbal ance angles,weight,rotation speeds,
and synchronous vector ray charts.
Historical data can be done using USB storage function.
Workpiece balance value can be preset w/ to enable indicate of finished-item standard qualification / disqualifi cation.

Model
M-500
M-1000
M-5000
Weight range of workpiece
5-500kg
50-1000kg
50-5000kg
Workpiece diameter
1500 mm
2000 mm
Joint drive
1300 mm
1500 mm
Distance between bearings
1500 mm
Journal
50-130 mm
50-180 mm
50-250 mm
Vector scope measuring
650-700 RPM
650-800 RPM
650 RPM
Precision
G6.3
G6.3
G6.3
Drive motor
15HP
20HP
30HP
Screen
22" Touch screen
Laser Scanner
Scanner(Optional)
